electric bike

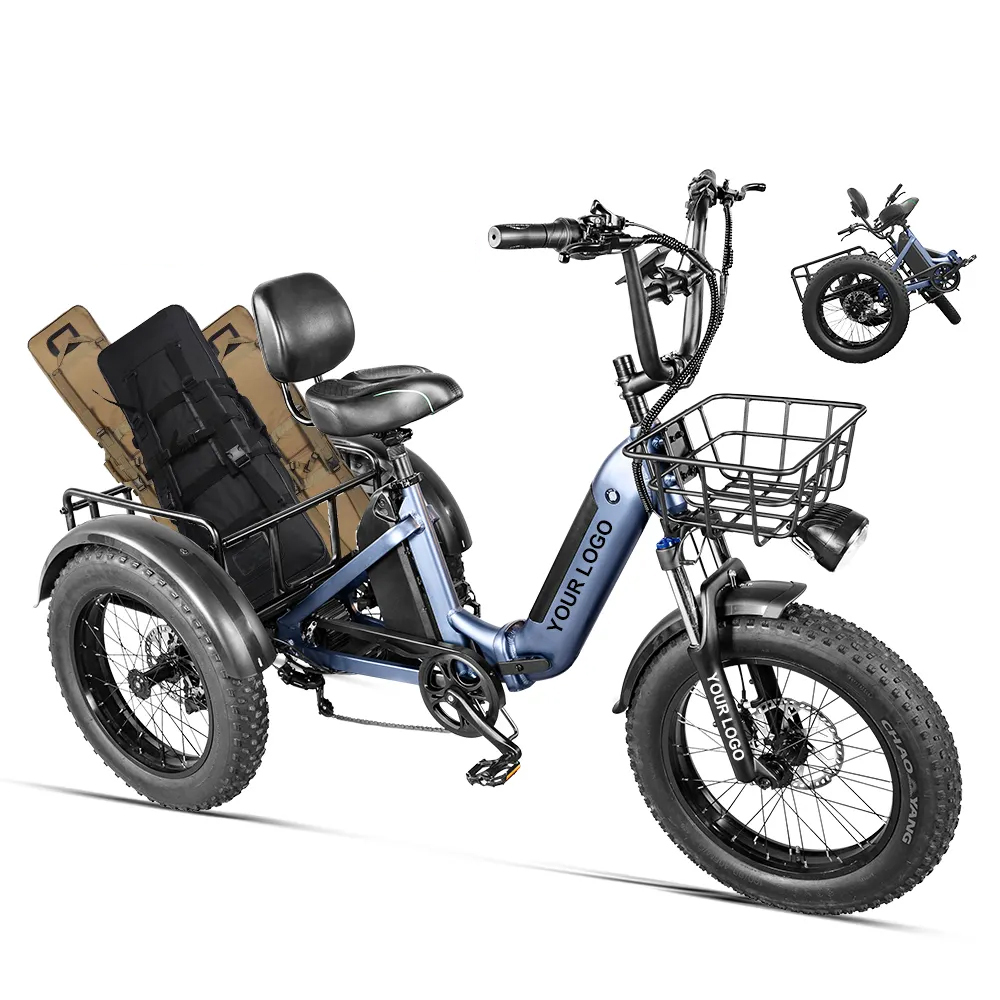

Rear drive three wheel cargo electric tricycle trike
Rear drive three wheel cargo electric tricycle trike
MOTOR (Electric version)
_______________________________________
Type: 250w rear wheel motor with differential
Transmission: 6 gear Shimano speed
Battery: 36V/12ah Lithium Battery
Full charge endurance: 40
Charger type input: AC 110-220V Output: DC +44V 1.8A
Charging time: 4 to 8 hours
Charging cycles: 550 cycles guaranteed
Driveline: Chain(KMC brand)
Controller: 12 mosfet sine wave controller with reverse function
Light System: common front and rear light
Chassis:
_______________________________
Brake / Front: Disc brake
Brake / Rear: V brake
Wheel / Front: 20*1.75''
Wheel / Rear: 26*1.75''
Selling point:
_______________________________
Painting: Spray painting
Frame: Steel
Stability: Damper
Warranty: 2 years
DIMENSIONS:
_______________________________
Trike L*W*H(mm) : 2250 * 850 * 1100
Cargo box L*W*H(mm) : 920 * 650 * 500
Load capacity: 150Kgs
Cradeability: 25°
Packing:
_______________________________
Style: CKD/SKD
Qty: 50pcs/20ft,100pcs/40ft
G.W./N.W. (kg): 60/80
Dimensions (mm): 1720*950*520
OPTIONAL:
_______________________________
Rain cover:$20/pc
Bike cover:$20/pc
Canopy:$5/pc
Cushion:$20/set
- Motor wattage:
- 250w
- Motor performance:
- Gear brushless hub motor
- Motor position:
- Front,Mid,Rear
- controller current:
- 14A,18A,22A,25A
- Display:
- LED,LCD
- Battery capacity:
- 10Ah,12Ah,13.3Ah
- Throttle:
- Twist throttle,Thumb throttle
- Brake:
- V brake,Disc brake
- Fork suspension:
- No
- Light:
- Yes
- Rear saddle:
- Yes
- Fender:
- Yes
