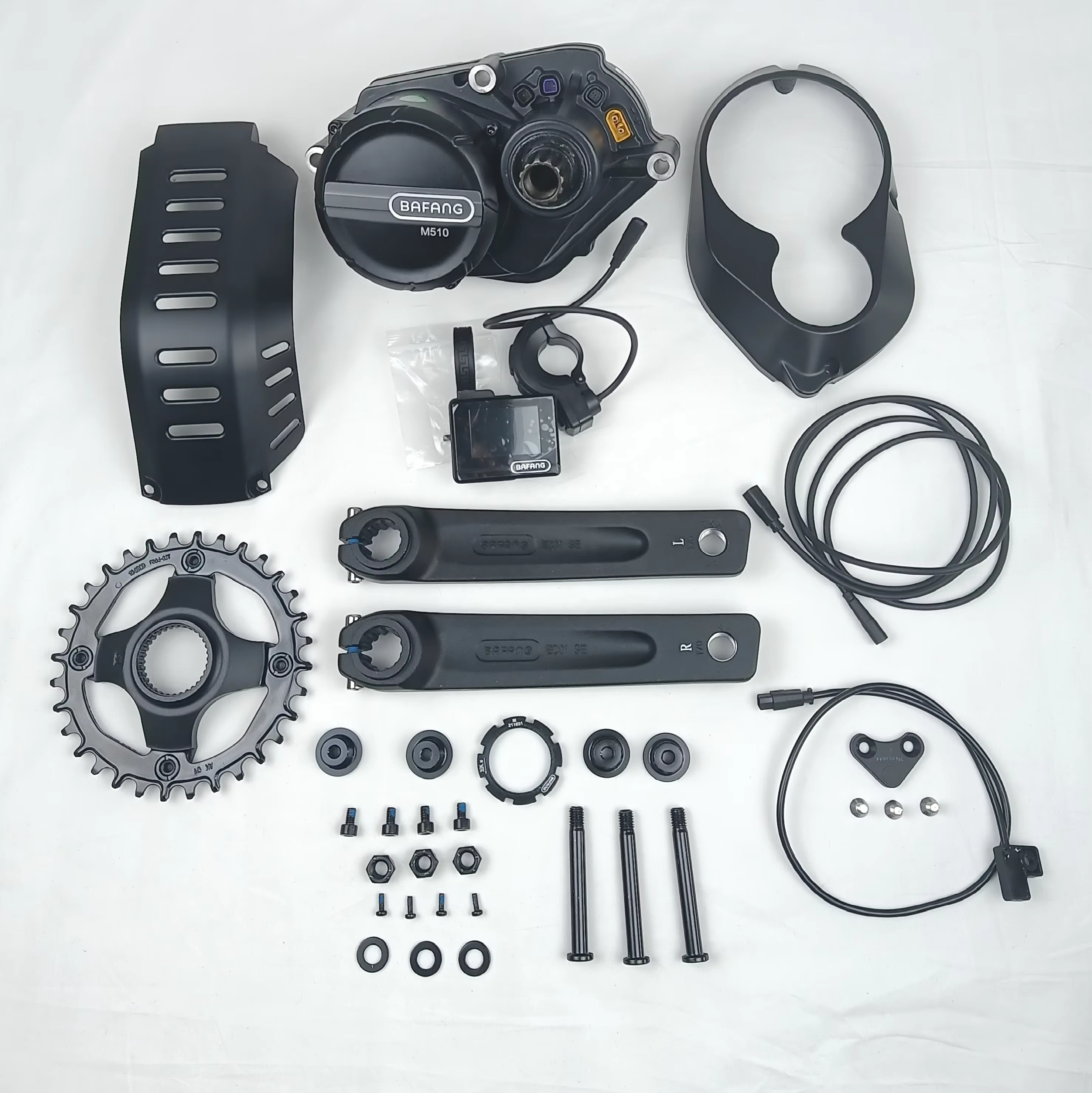

Bafang M510 drive system MM G522.250.C 36v / 43V / 48v 250w torque sensor mid drive motor with DP C244/245.CAN LCD display & BT F010.B630.C battery
Bafang M510 drive system MM G522.250.C 36v / 43V / 48v 250w torque sensor mid drive motor with DP C244/245.CAN LCD display & BT F010.B630.C battery
M510
M510 is an overturning upgrade of the eMTB performance motor. Comparing with the last generation, the max torque of M510 remains 95N.m, but the weight is reduced by 18% while the max power output is increased by 20%. Max cadence support is extended up to 120RPM.
Designed for eMTB bikes.
With a maximum torque of 95Nm and 250W rated power output.
M510 is an overturning upgrade of the eMTB performance motor. Comparing with the last generation, the max torque of M510 remains 95N.m, but the weight is reduced by 18% while the max power output is increased by 20%. Max cadence support is extended up to 120RPM.
Designed for eMTB bikes.
With a maximum torque of 95Nm and 250W rated power output.
SPECIFICATIONS
Core Data
Position Mid Motor Wheel Diameter (Inch) 20-29 Wheel Circumference (mm) 1400-2400 Rated Voltage (DCV) 36/43/48 Rated Power (W) 250 nT(Rpm) 122 Max Torque 95 N.m Pedal Sensor Speed & Torque lntegrated Shaft Standard BAFANG Color Black Weight (kg) 3
Function
| Position | Mid Motor |
| Wheel Diameter (Inch) | 20-29 |
| Wheel Circumference (mm) | 1400-2400 |
| Rated Voltage (DCV) | 36/43/48 |
| Rated Power (W) | 250 |
| nT(Rpm) | 122 |
| Max Torque | 95 N.m |
| Pedal Sensor | Speed & Torque lntegrated |
| Shaft Standard | BAFANG |
| Color | Black |
| Weight (kg) | 3 |
E-Brake Optional Light Drive Capacity (DCV / W) 12/6(max)
| E-Brake | Optional |
| Light Drive Capacity (DCV / W) | 12/6(max) |
Tests & Certifications
Certifications CE/EN 14766 / ROHS
DIMENSIONS
| Certifications | CE/EN 14766 / ROHS |
Dimension A 197mm Dimension B 125mm Dimension C 44mm Dimension D 154.8 mm Dimension E -
| Dimension A | 197mm |
| Dimension B | 125mm |
| Dimension C | 44mm |
| Dimension D | 154.8 mm |
| Dimension E | - |
Core Data
Display Type LCD Display Matrix Display Rated Voltage(DCV) 36/43/48 Support Modes 0-5 Operating Temperature -20 - 45℃ Com. Protocol CAN Weight (g) 80
| Display Type | LCD |
| Display | Matrix Display |
| Rated Voltage(DCV) | 36/43/48 |
| Support Modes | 0-5 |
| Operating Temperature | -20 - 45℃ |
| Com. Protocol | CAN |
| Weight (g) | 80 |
Mounting Parameters
Dimensions (mm) 43*86*86 Holder (mm) Ø 22.2 Cable Length(mm), Connector Type 230 M5.4 / 850 M5.4
| Dimensions (mm) | 43*86*86 |
| Holder (mm) | Ø 22.2 |
| Cable Length(mm), Connector Type | 230 M5.4 / 850 M5.4 |
DIMENSIONS
Dimension A 43 mm Dimension B 86 mm Dimension C 46 mm Dimension D Ø22.2 mm Dimension E 31 mm Dimension F 39.2 mm Dimension G 2"
FP G520
| Dimension A | 43 mm |
| Dimension B | 86 mm |
| Dimension C | 46 mm |
| Dimension D | Ø22.2 mm |
| Dimension E | 31 mm |
| Dimension F | 39.2 mm |
| Dimension G | 2" |
- Brand Name:
- Bafang
- Voltage:
- 48V,36V
- Placement on Vehicle:
- Mid
- Manufacturer Part Number:
- MM G522.250.C
- Wattage:
- 250w
- Display:
- DP C230
- Brake system:
- Brake levels
- Manufacture of origin:
- China, Jiangsu
- Chain wheel:
- 44T,46T
